Rhomaleosaurus

Rhomaleosaurus cramptoni lived in the shallow epicontinental sea covering northern and central Europe during the Toarcian (Early Jurassic, 183 to 178 Ma). The Cleveland Basin, in what is now Yorkshire, was a tropical to subtropical sea of moderate depth (a few tens of meters), with an anoxic seafloor most of the time. That anoxia is responsible for the exceptional preservation of marine vertebrates in the Whitby Mudstone Formation and also in the Posidonienschiefer of Holzmaden, Germany, where the close relative Meyerasaurus lived. The associated fauna included ichthyosaurs such as Stenopterygius, other smaller pliosauroids, marine crocodylomorphs of the Teleosaurus type, ammonites (Harpoceras, Dactylioceras), and large fish.

R. cramptoni was an active mid-sized predator, probably piscivorous with opportunistic generalization. The elongate jaws, about 88 cm long with conical, slightly recurved teeth, were suited for capturing fish and cephalopods in fast strikes, but could also handle larger prey in ambush, such as small ichthyosaurs and other smaller plesiosaurs. Taylor's (1992) functional study of R. zetlandicus, applicable by extension, shows that skull and mandible operated as box-girder beams, adapted to resist high bending moments, which allows a powerful bite. Smith and Dyke (2008) further describe sensory canals in the snout that may indicate well-developed underwater olfaction.

Overall morphology suggests an ambush predator or active hunter in open water, alternating efficient cruising with rapid strikes driven by the four flippers. There is no direct fossil evidence of social behavior in rhomaleosaurids. The preservation of isolated individuals in the Whitby and Holzmaden shales, rather than accumulations, is consistent with a solitary lifestyle. The cranial channels interpreted by Smith and Dyke (2008) as water pathways to olfactory sensory organs suggest the ability to track prey by smell in water, a strategy known in modern sharks.

Like other plesiosaurs, R. cramptoni was very likely endothermic or at least mesothermic, as needed to sustain predatory activity in the relatively cool northern European seas. Stable oxygen isotopes in Jurassic plesiosaur teeth support this reading, indicating internal regulation above ambient temperature. Breathing was obligately aerial, as in other marine reptiles, requiring regular surfacing. The four large flippers, driven by underwater flight strokes similar to those of penguins, provided efficient cruising propulsion and rapid attack acceleration.

Founding paper. Carte and Baily describe an articulated skeleton about 7 meters long recovered in 1848 from an alum quarry at Kettleness on the Yorkshire coast. The fossil had been kept at Mulgrave Castle for five years before being transferred to Dublin in 1853 for display at the British Association annual meeting. The authors name it Plesiosaurus cramptoni in honor of the Irish surgeon and naturalist Sir Philip Crampton. The work documents the large head relative to the body, relatively short neck, and robust limbs, traits that set it apart from other Plesiosaurus known at the time and that, decades later, would lead Harry Seeley to erect the genus Rhomaleosaurus in 1874. It is the mandatory starting point for any study of the species.

Holotype fossil of Rhomaleosaurus cramptoni (NMING F8785) on display. This is the articulated skeleton originally described by Carte and Baily (1863) as Plesiosaurus cramptoni.

Cast of the holotype (NHMUK PV R 34) at the Natural History Museum, London. The cast lets the public see the fossil described by Carte and Baily in 1863, whose original remains in Dublin.

In this work on Mesozoic marine reptiles, Harry Govier Seeley erects the genus Rhomaleosaurus (Greek rhomaleos, robust) to accommodate Carte and Baily's Plesiosaurus cramptoni. Seeley argues that cranial proportions, size, and robust limb bones justify the generic separation from Plesiosaurus sensu stricto. The taxonomic decision, though brief in the article, became established and is still used today. Rhomaleosaurus cramptoni became the type species of the genus and, by extension, of the family Rhomaleosauridae, named by Kuhn in 1961, which now includes about 17 genera from the Early and Middle Jurassic of the Northern Hemisphere.

Artistic reconstruction of Rhomaleosaurus and the teleosaurid Teleosaurus, contemporaries in the European Toarcian. Seeley's generic separation in 1874 allowed Rhomaleosaurus to be recognized as a distinct lineage.

Scale diagram of Rhomaleosaurus with a human, silhouette based on Smith and Benson (2014). The genus erected by Seeley in 1874 includes animals 6 to 7 meters long.

Andrews produces the classical descriptive catalogue of Oxford Clay and British Jurassic marine reptiles, on which every later work on Rhomaleosaurus relies. In the volume, Andrews compares material attributed to R. cramptoni, R. zetlandicus and other forms, establishing the morphological framework that would remain the dominant reference throughout the 20th century. The work functions as an anatomical atlas for British collections and defines the basis of comparison used by Cruickshank, Taylor, and Smith in their modern revisions. It is also the first to treat Rhomaleosaurus as part of a coherent group of English Liassic pliosauroids.

Holotype of Rhomaleosaurus zetlandicus (YORYM G503) at the Yorkshire Museum, York. Andrews's (1910) catalogue was the first comparative synthesis of the British Rhomaleosaurus.

Plesiosaurus dolichodeirus skeleton at the Natural History Museum, London. Andrews (1910) compared this long-necked plesiosaur with rhomaleosaurids, establishing diagnostic contrasts.

Andrews names the second British species of the genus: Rhomaleosaurus thorntoni, known from holotype NHMUK PV R 4853, found at Kingsthorpe Hollow, Northamptonshire. Unlike R. cramptoni and R. zetlandicus, both from Yorkshire, thorntoni is the only British Toarcian rhomaleosaurid found away from the Whitby coast. It preserves most of the skull, mandibles, and postcranial skeleton in three dimensions with little distortion. The work expands knowledge of the genus's geographic distribution in the Early Jurassic and provides diagnostic characters useful for distinguishing the three British species, serving as the basis for Smith and Benson's (2014) modern monograph.

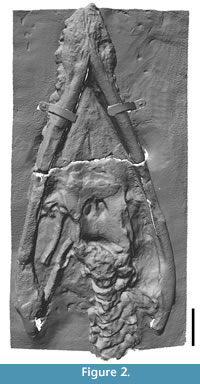

3D surface model of the cast of the R. cramptoni holotype (NHMUK PV R 34). The taxonomic revision of the genus begun by Andrews in 1922 is today supported by digital data like this.

Cast of 'Plesiosaurus' macrocephalus, possibly a juvenile rhomaleosaurid discovered by Mary Anning. Andrews (1922) used British material of this sort as comparison when describing R. thorntoni.

Taylor produces the first detailed functional study of a rhomaleosaurid head, using Rhomaleosaurus zetlandicus (YORYM G503) as a model. It is the first reconstruction of cranial musculature in a plesiosaur. The author treats the skull and mandible as box-and-girder beams and applies bending analysis to estimate the forces exerted during biting, concluding that bone and suture morphology is adapted to resist large bending moments produced by the adductor musculature. The work applies directly to R. cramptoni, whose skull had not yet been prepared in 1992, and became a reference for all subsequent biomechanical studies of pliosauroids, including McHenry (2009) on Kronosaurus.

Reconstruction of Rhomaleosaurus cramptoni by Nobu Tamura. Taylor's (1992) cranial analysis of R. zetlandicus applies directly to the anatomically similar skull of R. cramptoni.

Fossil of Stenopterygius hauffianus at the Urwelt-Museum Hauff, Holzmaden. Ichthyosaurs like this were potential prey considered in Taylor's (1992) biomechanical reconstructions.

Cruickshank produces the detailed cranial osteology of a large basal Lower Jurassic pliosauroid from Barrow upon Soar, Leicestershire, at the time assigned to Rhomaleosaurus megacephalus. The work expands cranial knowledge of the genus sensu lato and provides direct comparative basis for the skull of R. cramptoni, which would only be prepared in 2006. Cruickshank documents diagnostic characters that, two decades later, would allow Smith (2015) to segregate the material into a new genus, Atychodracon, removing it from Rhomaleosaurus and refining the composition of the genus. It remains essential reading to understand the lineage of R. cramptoni and the comparative framework of modern revisions.

Reconstruction of R. cramptoni by Dmitry Bogdanov. Cruickshank (1994) produced the cranial anatomy of R. megacephalus that served as comparative basis for the R. cramptoni skull, prepared only in 2006.

Reconstruction of the pliosauroid Macroplata tenuiceps by Nobu Tamura. Cruickshank (1994) worked in dialogue with descriptions of basal English pliosauroids such as Macroplata.

Adam S. Smith conducts, in his University College Dublin Ph.D. thesis, the first complete modern revision of Rhomaleosauridae. Because the R. cramptoni holotype skull was finally prepared in 2006, after 158 years under shale matrix, Smith was able to redescribe diagnostic characters previously inaccessible. The thesis suggests that R. propinquus is a junior synonym of R. zetlandicus and that R. megacephalus and R. victor do not belong to the genus. The work redefines the family and positions R. cramptoni as the central type species of a distinct lineage within Pliosauroidea. The thesis served as the basis for Smith and Dyke (2008) and Smith and Benson (2014), consolidating the modern systematics of the group.

Macroplata tenuiceps specimen at the Natural History Museum, London. Smith's (2007) revision reassessed the composition of Rhomaleosauridae, including close forms such as Macroplata.

Reconstruction of Meyerasaurus victor, previously assigned to Rhomaleosaurus. Smith's (2007) thesis laid the basis for separating Meyerasaurus from Rhomaleosaurus sensu stricto, consolidated in Smith and Vincent (2010).

Smith and Dyke publish the first modern paper exclusively devoted to R. cramptoni. The skull, preserved in three dimensions within the Whitby shale, had remained inaccessible for 158 years until its mechanical preparation in 2006 at the National Museum of Ireland – Natural History. The authors describe new cranial characters, including the configuration of the choanae, braincase, and snout sensory canals, and conduct the first in-group phylogenetic analysis devoted to pliosauroids. The results separate Rhomaleosauridae, Pliosauridae, and Plesiosauroidea as distinct lineages, correlated with patterns of marine biogeography and paleoecology of the Early Jurassic. A seminal work and mandatory reference for any subsequent study of the species.

Old alum quarry at Kettleness, Yorkshire, where workers found the R. cramptoni holotype in 1848. In 2006, the skull was finally prepared, enabling the Smith and Dyke (2008) redescription.

Hauffiosaurus fossil at the Urwelt-Museum Hauff. Smith and Dyke (2008) included this Toarcian pliosauroid in the first modern phylogenetic analysis devoted to basal pliosauroids.

Ketchum and Benson produce the first modern global phylogenetic analysis of Plesiosauria, with 66 taxa and 178 characters. One of the central results is that Rhomaleosauridae, along with four other basal taxa, does not fit within the classical Plesiosauroidea versus Pliosauroidea dichotomy. The authors erect the new clade Neoplesiosauria (Plesiosauroidea plus Pliosauroidea) and place rhomaleosaurids outside it, as a more basal lineage. This result repositions R. cramptoni: the type species is no longer a pliosauroid sensu stricto but a representative of a separate lineage, precursor to Neoplesiosauria. It is a fundamental taxonomic change for the evolutionary understanding of the group.

Cladogram of Plesiosauria showing Rhomaleosauridae as a basal lineage outside Neoplesiosauria. Structure follows Ketchum and Benson (2010), confirmed in subsequent analyses.

Skull reconstruction of Liopleurodon ferox, a typical Middle-Late Jurassic pliosaurid. Ketchum and Benson's (2010) analysis placed pliosaurids like Liopleurodon inside Neoplesiosauria, separate from basal rhomaleosaurids.

Smith and Vincent erect the new genus Meyerasaurus for a complete Toarcian skeleton from Holzmaden, Germany, previously assigned to Rhomaleosaurus. The work is part of the effort by Smith and colleagues to refine the generic content of Rhomaleosauridae: as new species are analyzed in detail, it becomes clear that Rhomaleosaurus strict sense includes only cramptoni (type species), zetlandicus, and thorntoni, all British. This taxonomic refinement makes R. cramptoni even more central, since the genus in strict sense becomes much more restricted. It is an important milestone in stabilizing the systematic framework used in all subsequent studies of the family.

Hauffiosaurus scale diagram, a Toarcian pliosauroid. Smith and Vincent (2010) refined the composition of Rhomaleosauridae, separating German forms such as Meyerasaurus and better defining Hauffiosaurus.

Reconstruction of Attenborosaurus conybeari by Nobu Tamura. Smith and Vincent's (2010) work contributed to restricting Rhomaleosaurus to the three British species.

Benson, Evans, and Druckenmiller conduct a phylogenetic and morphometric analysis of plesiosaurs spanning the Triassic-Jurassic boundary, showing high taxonomic diversity but low morphological disparity and relatively small body sizes. The work again recovers Rhomaleosauridae as a lineage outside Neoplesiosauria, corroborating Ketchum and Benson (2010), and documents the initial radiation of the group in early Jurassic seas, which precedes the appearance of R. cramptoni by about 20 million years. Among the new species described in the paper are Stratesaurus and Avalonnectes, basal relatives within Rhomaleosauridae, fundamental to understanding the evolutionary context leading to large and robust forms like R. cramptoni in the Toarcian.

Figure 1 of Benson, Evans, and Druckenmiller (2012): Stratesaurus taylori holotype (OUMNH J.10337), basal rhomaleosaurid of the Early Jurassic preceding the radiation that culminates in R. cramptoni.

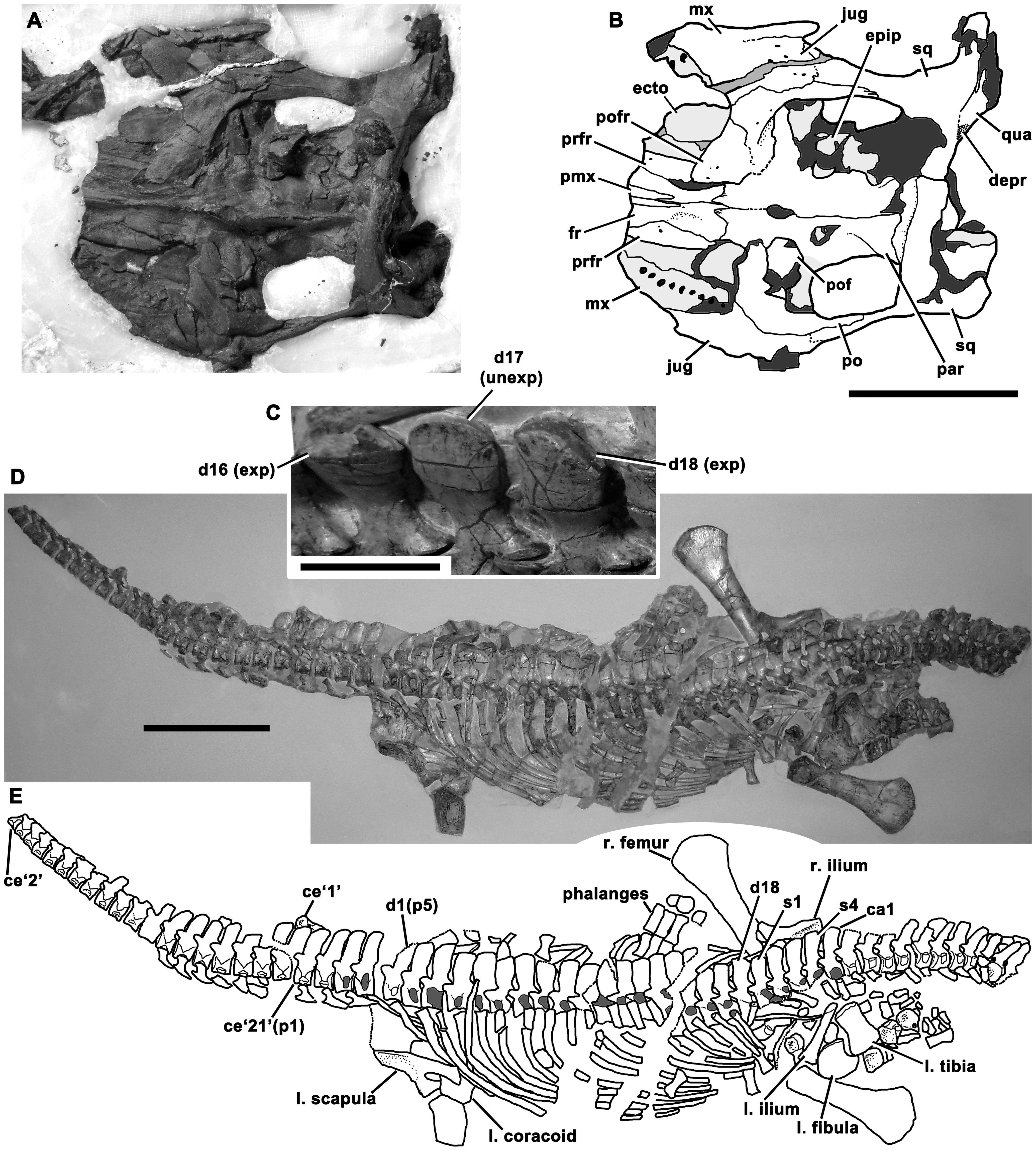

Figure 2 of Benson et al. (2012): Avalonnectes arturi holotype (NHMUK 14550), another basal rhomaleosaurid described in the same study. It represents early stages of the lineage that includes R. cramptoni.

Smith and Araújo describe Thaumatodracon weidenrothi, a new rhomaleosaurid from the Sinemurian (Early Jurassic, about 195 Ma) of Lyme Regis, England. The species fills a morphometric and stratigraphic gap between the older, smaller Early Jurassic rhomaleosaurids and the larger, more robust Toarcian forms such as R. cramptoni. The work is important for understanding the evolution of the group that culminates in R. cramptoni: it shows a progressive increase in body size and cranial robustness over about 15 million years within the family. The phylogenetic analysis confirms R. cramptoni in a derived position within Rhomaleosauridae.

Figure 4 of Benson et al. (2012): time-calibrated phylogenetic tree of Early Jurassic plesiosaurs, the framework in which Smith and Araújo (2017) place Thaumatodracon as a link between basal forms and R. cramptoni.

R. cramptoni reconstruction by Nobu Tamura used as hero image. Smith and Araújo (2017) documented a progressive size increase in Rhomaleosauridae through the Early Jurassic.

Smith and Benson publish a detailed osteological monograph of Rhomaleosaurus thorntoni (NHMUK PV R 4853) in 40 pages of the Monographs of the Palaeontographical Society. It is the most complete rhomaleosaurid skeleton preserved in three dimensions and therefore the new anatomical reference of the genus. The monograph refines, through direct comparison, the diagnosis of R. cramptoni and consolidates the distinction between the three British species of the genus. It includes complete descriptions of skull, spine, pectoral and pelvic girdles, flippers, and preliminary histology, and presents a phylogenetic analysis placing R. cramptoni and R. thorntoni as sister species within Rhomaleosaurus sensu stricto. It is the current canonical anatomical reference.

R. cramptoni reconstruction by Dmitry Bogdanov used as thumbnail. Smith and Benson (2014) provided the reference osteological monograph of the genus, comparing R. thorntoni and R. cramptoni.

Figure 3 of Benson et al. (2012): Eoplesiosaurus antiquior holotype (TTNCM 8348). Smith and Benson (2014) placed R. thorntoni within the same stratigraphic framework of these Early Jurassic analyses.

Smith reassesses the holotype of Plesiosaurus megacephalus Stutchbury, 1846, destroyed in a Bristol air raid in 1940, using plaster casts of the skull and right forelimb made before the destruction, historical photographs, and original descriptions. The analysis shows that the material is distinct from Rhomaleosaurus strict sense and from Eurycleidus arcuatus and justifies a new genus: Atychodracon, from Greek atychis, unfortunate, referring to the loss of the holotype. The reduction in the generic content of Rhomaleosaurus reinforces the centrality of R. cramptoni as type species and once again refines the composition of the family, in direct continuity with the works of Smith (2007) and Smith and Benson (2014).

Figure 5 of Benson et al. (2012): diversity, disparity, and body size patterns in Early Jurassic plesiosaurs. Smith (2015) placed Atychodracon in this same paleobiological context.

Dactylioceras commune ammonite from the Whitby Mudstone, Yorkshire, carved as a 'snakestone', a Whitby coast tradition. It represents the Toarcian environment in which R. cramptoni and relatives lived, reassessed by Smith (2015).

Sachs, Eggmaier, and Madzia describe Franconiasaurus brevispinus, a new plesiosaur from the late Toarcian of Germany, about 175 Ma, nearly contemporaneous with the R. cramptoni holotype. The phylogenetic analysis includes R. cramptoni and confirms the placement of Rhomaleosauridae as a basal lineage within Plesiosauria, outside Neoplesiosauria, consolidating results from Ketchum and Benson (2010) and Benson et al. (2012). The work also documents the diversity of the plesiosaurid fauna of the European epicontinental sea in the late Toarcian, the direct context in which R. cramptoni lived. It is the most recent reference to the phylogenetic placement of the species and shows that, even more than 160 years after its description, R. cramptoni remains pivotal to the systematics of basal plesiosaurs.

Figure 6 of Benson et al. (2012): Early Jurassic plesiosaur morphospace. Sachs, Eggmaier, and Madzia (2024) updated this picture with Franconiasaurus, confirming the basal placement of Rhomaleosauridae.

Reconstruction of Attenborosaurus by Nobu Tamura. Sachs et al. (2024) analysis included several basal Early Jurassic European forms such as Attenborosaurus, reconfirming the placement of Rhomaleosauridae outside Neoplesiosauria.
